Low cost reliable MyKad Reader with software. Powerful printing options for captured data.

Dimensions	85mm(L) X 72mm(W) X 17mm(H)
Weight	EZ100PU: approx. 120g
Power Consumption Power Voltage(v)	EZ100PU: Powered by USB hub,5Vą5%,60mA
Card Acceptor / Durability	Friction type with over 200,000 insertion cycles
Connecting Interface	EZ100PU: A type USB male 4 pin connector, compliant to USB2.0 (full speed)
Compliant IC Card Standard	CPU card: Comply with ISO7816-1,2,3 T=1 and T=0 protocol Memory card: Synchronous 2-line, 3-line and I2C Interface
Driver Support	EZ100PU- (Use with Easy MyKad Reader Lite 3.0 Software) Windows 7/8/10 32 & 64 bits
Software Library	PC/SC compliant
Environmental	Operating Temperature: 0 ~ 50°C Storage Temperature: -35 ~ 70°C Operating Humidity: 20% ~ 90%

Need to register people quickly, need to record information for Human Resource purposes, need accurate records of your

employees, people who visit your clinic. Computerise the registration process with our easy to install, easy to use MyKad Reader

Kit. Our Easy MyKad Reader Lite 3.0 kit comes complete with USB Smart Card Reader and Software to read MyKad Data into a

computer system.

• Read data and photo from MyKad from electronic chip using smart card reader

• Manually enter data using keyboard

• Capture photo from web cam

• Used photo from file or scanner

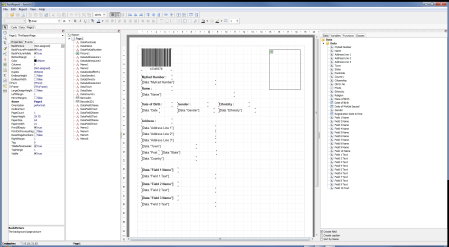

• Design any type of form for printing with captured data

• Save user designed forms can be used by other users of Easy MyKad Reader Lite3.0 by importing

• Print photo, text, bar codes and qr codes

• Print on any size paper the printer can handle

• Add company logo or other text to print form

• Export to PDF, HTML or csv files

• 10 additional user defined fields for data (for example Phone number, email, agent no etc)

• Save data to text file

• Save Photo to BMP

The following information can be captured from the Smart Chip built into the MyKad

Available Data with our reader:

MyKad Number

Full Name

Old IC Number

Gender

Ethnicity

Religion

Date of Birth

Place of Birth

Address

Citizenship

Colour Photo (As on MyKad)

We have provided 10 additional places on our software for your to manually type in a phone number and your reference code which

will appear in the final print out or PDF file.
